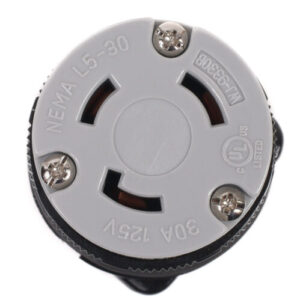

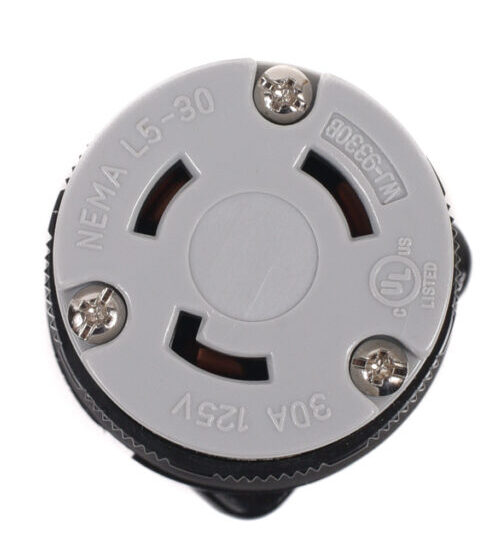

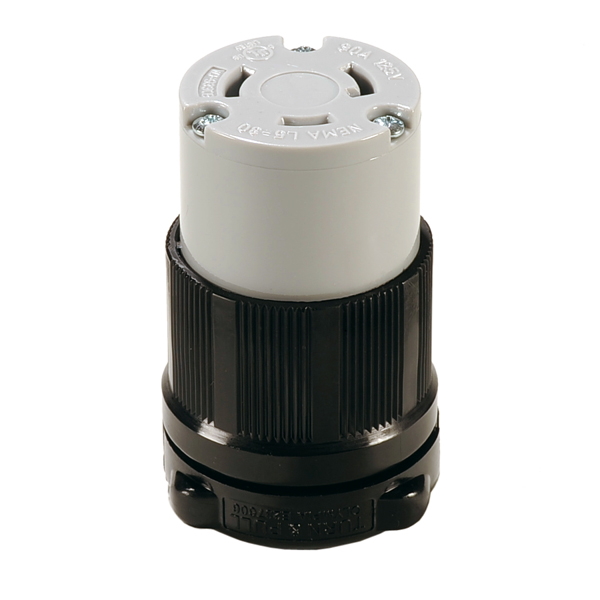

TWIST-LOCK NEMA L5-30R Connector



30A/125V, 2 Pole/3 Wire,Locking, Quality Nylon Construction, Black & White, Easy-to-follow Installation Instructions, UL/cUL and RoHS Compliant

Please contact us for a higher volume quote.
SKU: WBL530R Category:

Additional information

Part Number WBL530R
Rating 30A/125V
Pole 2
Wire 3
Wire Size 18~8AWG
Cable OD .375" to 1.156"
Material PC+Nylon
Color Black Body & White Insert


Webber’s NEMA L5-30R, Locking, Attachable Replacement Connector comes with easy-to-follow Installation Instructions. This Locking connector is specifically designed to ensure a secure and reliable connection for all applications. This device features Isolated see-thru Wiring Chambers which helps to prevent arcing & flashover during installation of wires for a solid connection. There is an adjustable rear Cord Clamp for attaching a variety of wire sizes (accepts 18~14 AWG). This Grounded 3 Wire, 30 Amp/125 Volt Connector is designed for Commercial and Residential uses. This Wiring Device features high quality, durable nylon construction material. All our Wiring Devices meet UL, cUL and RoHS standards.
